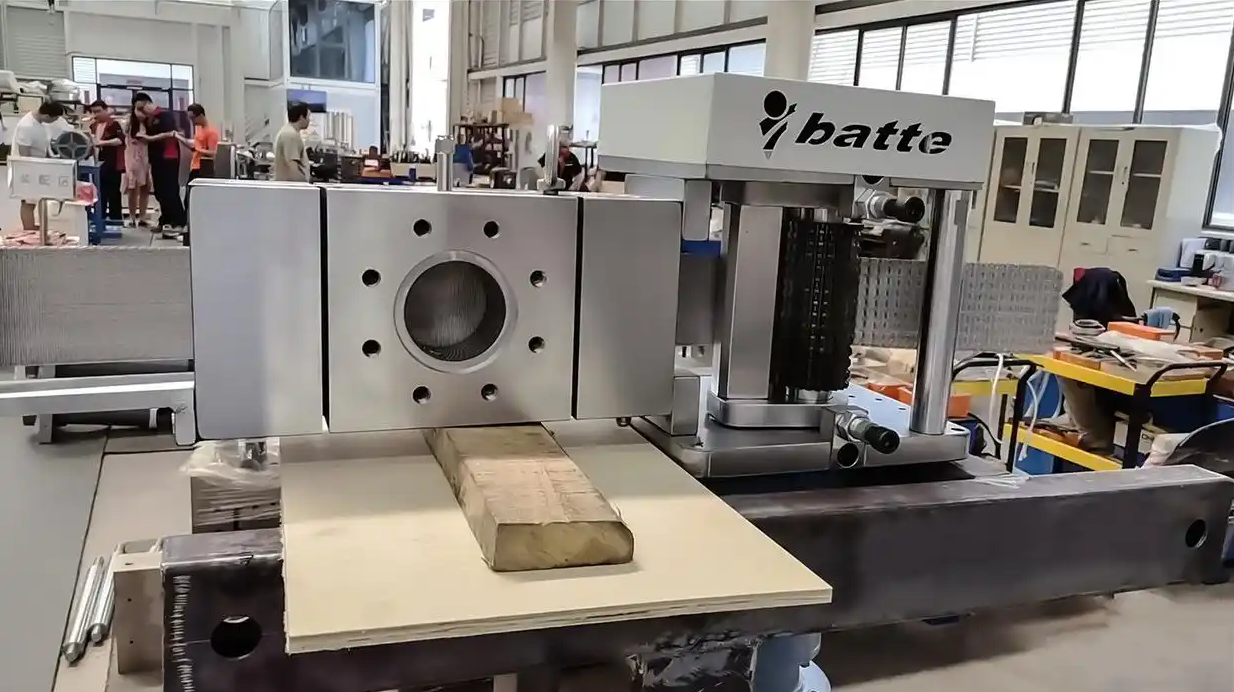

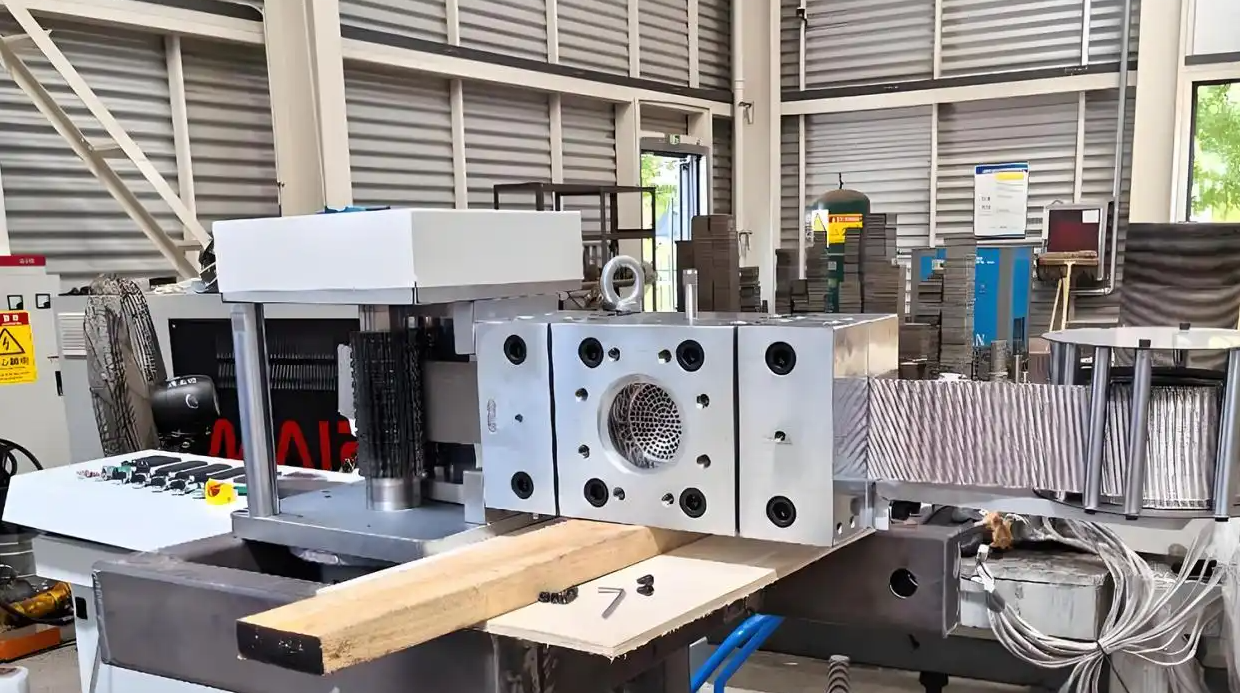

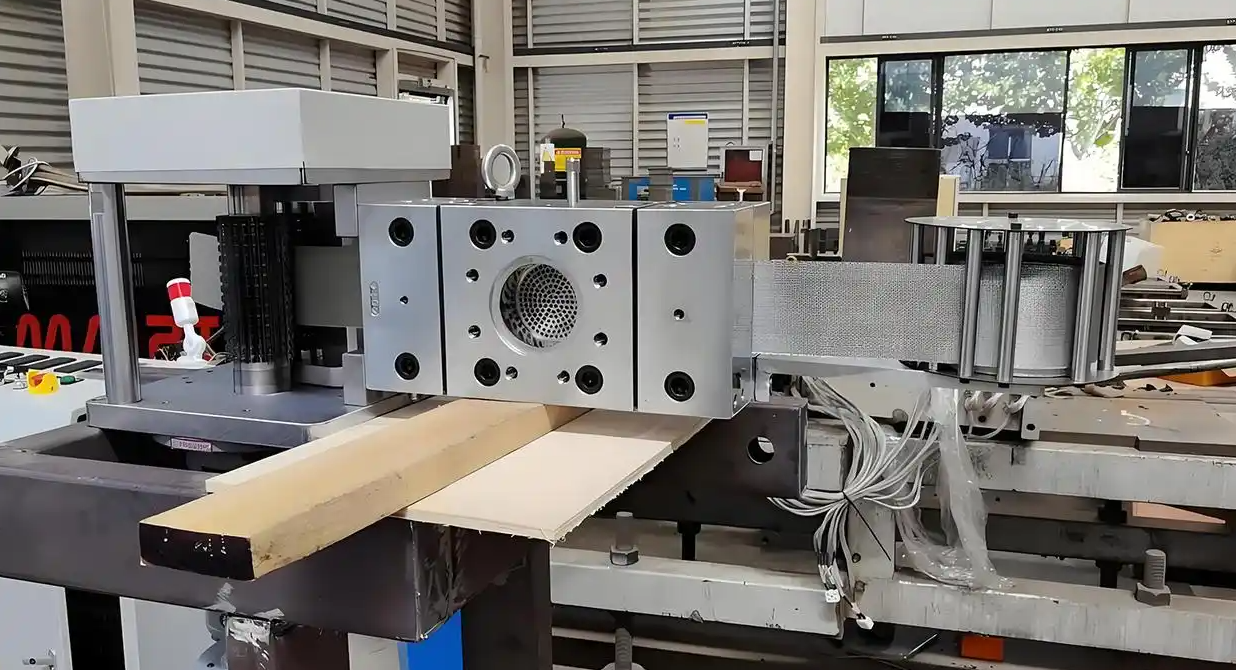

Motor-Driven Mesh Belt Automatic Screen Changer

The motor-driven mesh belt screen changer is a new generation of intelligent, non-stop melt filtration equipment. Its core advantages lie in its precision, controllability, and stable operation. Compared to traditional mesh belt automatic screen changers, it offers significant improvements in control accuracy and reliability. The following provides a detailed introduction to its structural features, operating process, and suitable applications:

I. Core Structural Features

In addition to the standard components of a mesh belt screen changer—the filter housing, heating and cooling modules, and electrical control system—this model incorporates a dedicated motor-driven unit:

‌Independent Servo Drive Module‌: Replacing the traditional structure that relies on melt pressure to drive the mesh belt, this system uses an independent servo motor paired with a precision transmission mechanism. Both the travel distance and speed of the mesh belt can be digitally set via the electrical control system, achieving millimeter-level precision and eliminating issues of over- or under-travel.

Dedicated Wear-Resistant Mesh Belt Assembly: The core filtration component—a checkerboard-pattern mesh belt—is woven from a special alloy, combining high strength with heat resistance. Available in custom lengths ranging from 10 to 20 meters, it can support continuous, uninterrupted production for several months.

Water-Cooled Seals + Circulating Cooling System: The system employs sealed water-cooled seals combined with a reverse osmosis purified water cooling circuit. This design prevents melt leakage while avoiding scale buildup that could clog waterways, ensuring excellent long-term seal stability.

II. Precise Closed-Loop Three-Stage Workflow

The entire screen-changing process operates fully automatically in a closed-loop system without requiring manual intervention. It is divided into three core stages:

‌Precision Triggering Stage‌: A pressure sensor at the feed inlet continuously monitors melt pressure. When impurities accumulate on the filter screen and cause the feed pressure to reach a preset threshold, the control system automatically triggers a screen-changing command. If melt pressure fluctuations are minimal during production, the system can also be set to automatically initiate screen changes at fixed time intervals, ensuring the filter screen maintains high-efficiency filtration at all times.

‌Intelligent Screen-Changing Stage‌: Upon triggering the screen change command, the servo motor immediately drives the screen belt to move at a constant speed. Simultaneously, the heating elements at the outlet automatically activate, locally raising the temperature to reduce melt viscosity and minimize resistance to belt movement. Under the motor’s stable traction, the old screen—laden with impurities—is uniformly withdrawn from the filtration zone, while a brand-new screen simultaneously enters the working position. Throughout the process, the melt maintains a stable flow, with pressure fluctuations controlled within ±2%, significantly outperforming hydraulically driven models.

‌Stable Reset Phase‌: Once the new filter screen is in place, the motor stops immediately, the heating elements shut off, and the outlet cooling system activates. Cold water rapidly solidifies the melt to form a sealed structure that prevents material leakage. After the feed pressure returns to the normal range, the equipment automatically resumes stable filtration mode, awaiting the next screen change trigger signal to ensure uninterrupted filtration operations.

III. Suitable Production Scenarios

This system is particularly well-suited for high-end processing scenarios with stringent requirements for production stability and product precision. These include long-process continuous production such as high-transparency packaging film, high-end synthetic fiber spinning, optical fiber, optical sheet materials, and high-quality pelletizing. It is especially compatible with modern, unmanned automated extrusion production lines.
